lssdoc: Word and PDF questionnaire documents from LimeSurvey .lss files

lssdoc turns a LimeSurvey .lss export into a polished Word (.docx) or PDF questionnaire document for anyone working with a LimeSurvey survey: researchers, survey methodologists, ethics committees, translators and reviewers. It renders the questionnaire content side by side in up to four languages, runs an automated integrity audit, and produces a layout that reads as a published instrument – not a developer dump.

Two output templates:

  • "cards" – one detached block per item (meta table + question table), stacked vertically. Closest to the printed questionnaire a respondent would see.

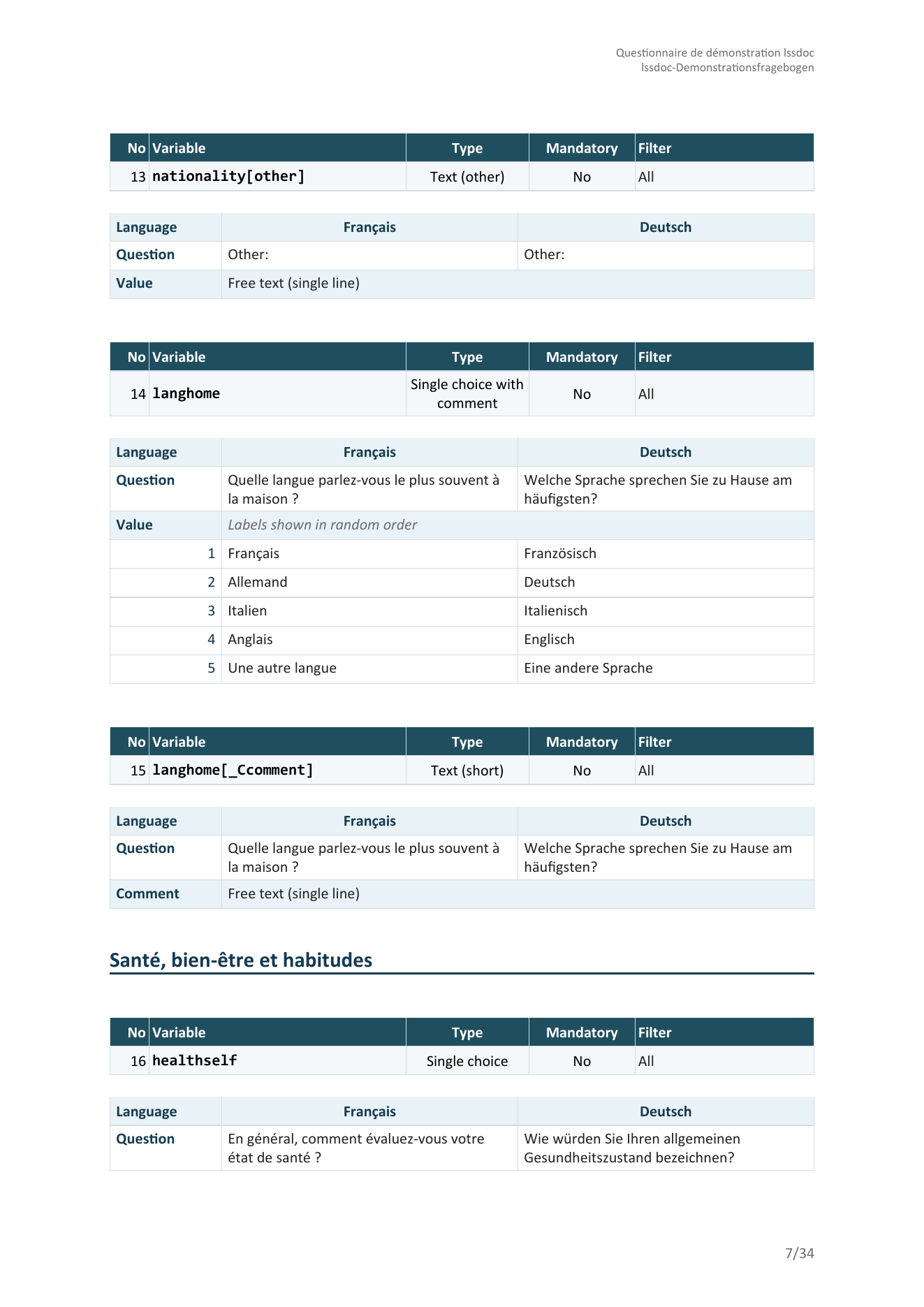

    Cards layout: one card per question stacked vertically, French and German side by side -- a free-text Other field, a single-choice-with-comment question showing its labelled answer scale and paired comment row, then a new section heading and the next single-choice question

  • "table" – one dense codebook table covering the whole document: every variable is one tinted Question row carrying its metadata, followed by one or more white Value rows holding the answer codes and their labels per language. Group banners (with their description, when present), welcome text, survey description and end text become labelled rows of the same table so the codebook reads as a single artifact.

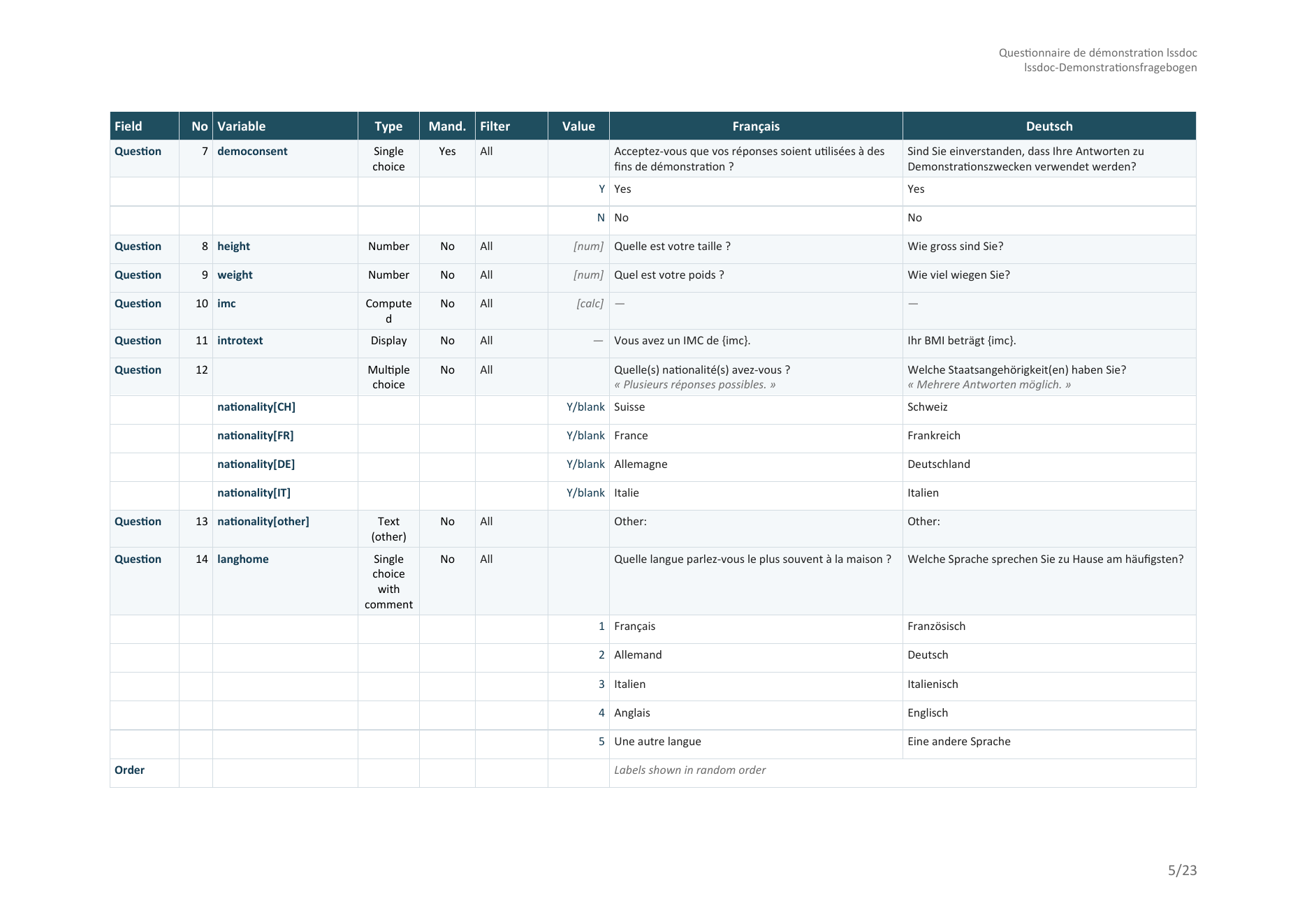

    Codebook layout: one variable per row with French and German columns -- a yes/no single choice, two Number variables, a computed variable, a display item, a multiple-choice question expanded into one row per option with its free-text Other, and a single-choice answer scale; the column header repeats automatically at the top of each new page

Other things lssdoc takes care of for you:

  • Multilingual chrome. Column headers, row labels, type labels (Single choice / Multiple choice / Text / Number …), Value descriptors, the audit section – everything outside the survey content – is translated to English, French, German, Spanish or Italian. Independent from the survey’s content languages, so you can keep your FR/DE questionnaire and switch the document scaffolding to English (or vice versa) with a single argument.
  • Variable-centric compound rendering, matching the data file. Every response variable is documented under the exact column name of the LimeSurvey CSV / Excel export, so the variable index lines up with the raw data file column for column: arrays and multiple choice as parent[subq] / parent[other], dual-scale arrays split into one block per scale (parent[subq][1]), two-dimensional arrays as the row x column cross-product (parent[row_col]), ranking expanded into one column per position (parent[answerid]), and list-with-comment into parent[_Ccomment]. Pass variable_names = "underscore" for the Expression Manager / SPSS / Stata code form (parent_subq) instead.
  • Methodological type labels. UI distinctions like “List (radio)” vs “List (dropdown)” collapse into “Single choice”, because the response semantics are identical and the actual codes appear in the Value section. The Type cell reads in the methodologist’s vocabulary, not LimeSurvey’s.
  • Automated audit. Missing translations, duplicate codes, forward references in routing filters, array-scale inconsistencies, orphan structural references, types missing their required options or subquestions – all flagged inline on the rendered item and, when you ask for it, in a dedicated section. No AI; rule-based and reviewable.
  • Local-only processing. No network calls, no third-party services. The questionnaire content never leaves the machine where R runs.

Installation

From R-universe (recommended – pre-built, no compiler needed):

install.packages(
  "lssdoc",
  repos = c("https://amaltawfik.r-universe.dev", "https://cloud.r-project.org")
)

Or the development version from GitHub, with pak:

# install.packages("pak")
pak::pak("amaltawfik/lssdoc")

Or with remotes:

# install.packages("remotes")
remotes::install_github("amaltawfik/lssdoc")

The package depends on officer and flextable (declared as Suggests – the parse and audit paths work without them).

Quick tour

The public API is four functions:

Function Role
read_lss(file) Parse a .lss into a structured lss object.
audit_lss(input) Inspect a survey for anomalies; returns an lss_audit object with a print() method.
render_questionnaire(input, output, ...) Render the full questionnaire to a Word or PDF document.
render_audit(input, output, ...) Render the audit findings alone to a Word or PDF document.

audit_lss(), render_questionnaire() and render_audit() accept input as either a path to a .lss file or a pre-parsed lss object. The output format for the two renderers is inferred from the extension of output (.docx or .pdf).

A one-line pipeline

library(lssdoc)

# Parse the .lss and render the Word document in a single call.
render_questionnaire("survey.lss", "review.docx")

The output uses the "cards" template by default, with chrome_lang following the survey’s primary content language. Open review.docx in Word, click Yes when prompted to update fields (page numbers and the table of contents).

Table layout

render_questionnaire(
  "survey.lss",
  "review.docx",
  languages   = c("en", "fr"),
  template    = "table",
  chrome_lang = "en"
)

languages controls which content columns appear and in which order; the first one is the primary language used for the table of contents and group headings. chrome_lang is independent of languages: keep chrome_lang = "en" to get English column headers and row labels even if your survey content runs in French and German – pass chrome_lang = "fr" (or "de" / "es" / "it") when you want the scaffolding to follow the content.

Ethics committee submission

render_questionnaire(
  "survey.lss",
  "ethics_review.docx",
  languages              = c("en", "fr"),
  template               = "table",
  chrome_lang            = "en",
  show_privacy_settings  = TRUE,   # anonymized / save partial / IP / referrer / timestamp
  show_admin_settings    = TRUE,   # alias / end URL / active
  authors = list(
    list(name        = "Jane Doe",
         affiliation = "HESAV",
         orcid       = "0009-0001-2345-6789"),
    list(name        = "John Doe",
         affiliation = "HESAV",
         orcid       = "0009-0002-3456-7890")
  ),
  description = paste0(
    "Validated as part of the SNSF project XYZ. ",
    "Reference: https://doi.org/10.5281/zenodo.123456"
  )
)

The cover page picks up the authors block (with clickable ORCID hyperlinks), the description (with URLs auto-detected and made clickable), and the privacy / admin settings rows in the metadata table.

Minimal questionnaire – just the variables

render_questionnaire(
  "survey.lss",
  "minimal.docx",
  template         = "table",
  show_welcome     = FALSE,
  show_endtext     = FALSE,
  show_description = FALSE,
  show_groups      = FALSE,
  show_toc         = FALSE,
  show_audit       = FALSE,
  show_index       = FALSE
)

Pure data: one row per variable header, one row per value code, nothing else.

Parse once, render many

# Parse a single time, then audit and render different variants
# without re-reading the .lss.
lss   <- read_lss("survey.lss")
audit <- audit_lss(lss)
print(audit)  # console summary of flagged anomalies

render_questionnaire(lss, "review_en.docx", languages = "en")
render_questionnaire(lss, "review_fr.docx", languages = "fr")
render_audit(lss, "qa_followup.docx")

See the audit in action

A deliberately flawed survey ships with the package, so you can see what audit_lss() catches without supplying your own file:

demo <- system.file("extdata", "audit_demo.lss", package = "lssdoc")
audit_lss(read_lss(demo))
#> -- lssdoc audit ----------------------------------------------------
#> 12 findings: 5 errors, 7 warnings, 0 notes.
#> x Survey: duplicate question code 'age'
#> x Question 'age': filter references 'income', asked later (forward reference)
#> x Answer 'X': points to a question id that does not exist
#> x Subquestion 'orphan_sq': points to a question id that does not exist
#> x Question 'blank_q': text empty in every language
#> ! Question 'satisf': expects answer options, but none are defined
#> ! Question 'income': text missing in 'fr'
#> ! Question 'comment ': code carries whitespace
#> ... plus an empty group name, missing subquestions and an array-scale mismatch.

PDF output

# Same call, just pass a .pdf path. The package writes the .docx
# into a temp file and converts it locally via LibreOffice
# (must be installed and on PATH).
render_questionnaire("survey.lss", "review.pdf", template = "table")
render_audit("survey.lss", "qa.pdf")

Templates and palette

The rendered .docx uses an editorial petrol-blue palette tuned for publication-grade output (#133B52 primary, #3A7C8C accent, #E9F2F6 and #F4F8FA for tinted bands, #D3DCE2 for the soft grid). Calibri body / Consolas monospace by default; the font and font_code arguments accept any string to override.

Citation

Run citation("lssdoc") for the up-to-date citation, or cite as:

Tawfik A. (2026). lssdoc: Render Multilingual Questionnaires from
LimeSurvey '.lss' Files. R package version 0.1.0.
https://github.com/amaltawfik/lssdoc

License

MIT. See LICENSE for the full notice.
